True Capacitance Moisture Meter System (TCS) has the unique ability to accurately determine moisture content of the sampled lumber both above and below fiber saturation. The transition through fiber saturation is known to be a critical stage of the drying schedule, but until now knowing when this is occurring has been by conjecture alone. With TCS, schedule development and refinement is both easier and more precise.
|

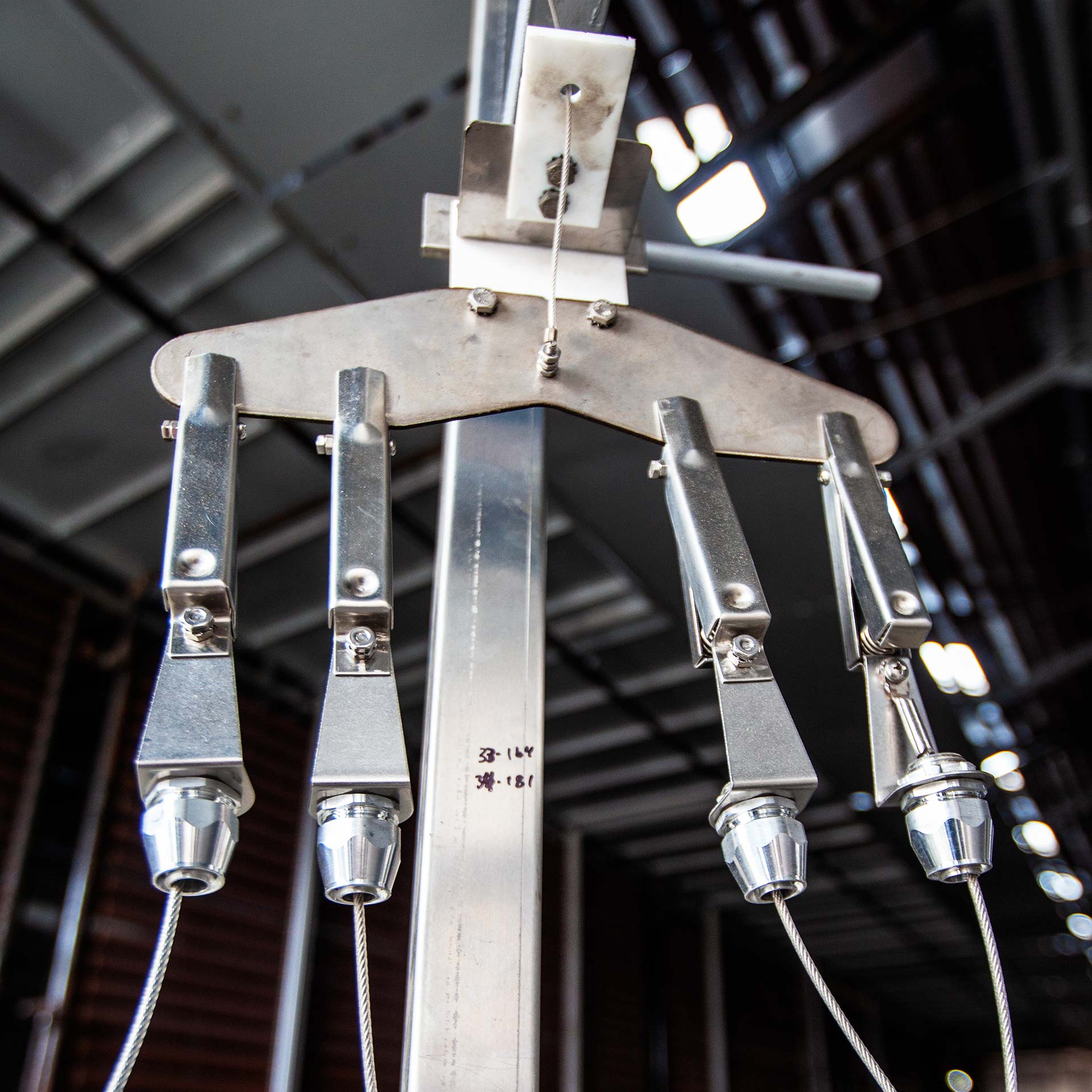

Systems with either 6 or 8 units are available, to accommodate shorter and longer kiln lengths. Sensor units consist of two plates 48" long, placed approximately 15 courses apart. This arrangement provides greater sampling range and accuracy than previously available.
|
|

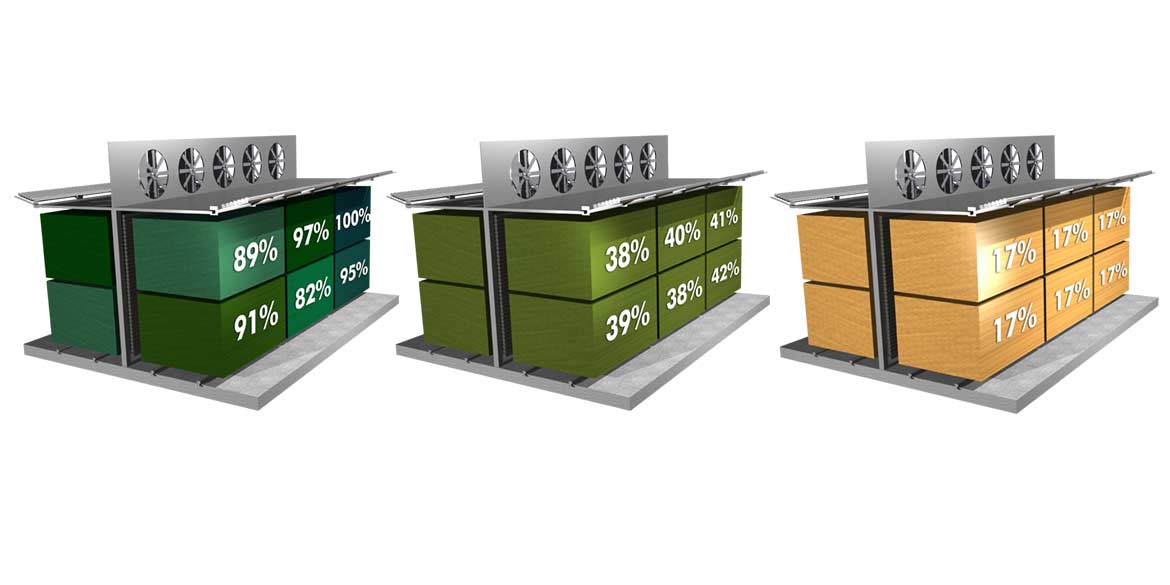

The system provides automatic kiln shut-down based on actual moisture content versus time and is accurate to near 1%. In addition, operator decisions such as when to initialize equalizing or conditioning can now be based upon actual moisture content readings, instead of time alone.
|
TCS easily ties in with both new and existing Wellons CMZ dry kiln control systems, and works in conjunction with TDAL to provide better control of the drying process than ever before.
|
|
Throughout it's history, Wellons has continually worked to upgrade and enhance the performance of it's lumber dry kiln systems. We pioneered the development of the Computerized Multizone Control System (CMZ), as well as many other kiln enhancements now universally accepted as necessary features to ensure superior lumber drying results..
TCS continues the Wellons tradition of providing our customers with the best possible tools for drying lumber. Contact us today for more information on this important new development in quality lumber drying.
|
|
